Compressor Filter

The media is manufactured from water-resistant glass microfiber and Synthetic.  Both edges are using corrugated aluminum separators.  Filter media pack to be encapsulated top and bottom with epoxy adhesive.  The frame is available for Metal Frame (Galvanized Steel).
Filter size: 24” x 24” x 1-1/2” with efficiency 98% on 10µ particle size.
Filter size: 24” x 24” x 11-1/2” with efficiency 99.97% on 2.0µ particle size (94% ASHRAE Dust Spot).

First Pilter
 Specifications
Size:24”*24”*1-1/2”,
Filter Media:Synthetic Fiber
Filter Efficiency:98% on 10 micron particle size or higher
Frame:Galvanized Steel
Sealant: Filter Media pack to be encapsulated top and bottom with pvc adhesive
Screen:4*4 Galvanized Metal on upstream face 1/2 Expanded Metal on downstream face
Removal Strap:Upstream face
Nominal Rated Capacity:2000 CFM

Features:
1.Excellent clean ability.Panel to be cleanable by compressed air or washable by mild detergent.Media pack can remain fine shape and space.
2.Ease of maintenance and installation
3.Lower pressure drop.greater dust collection capacity
4.Withstands differential high,pressure and prevents contaminant bypass

Sencond Pilter
 Specifications
Size:24”*24”*1-1/2”,
Filter Media:water-resistant Glass Microfiber
Filter Efficiency:99.97% on2.0 micron particle size (94%ANHRAE Dust Spot)
Frame:12mm Galvanized Steel
Sealant:Filter media pack to be encapsulated top and bottom with epoxy adhesive
Gasket;HEPA rated,Gasket seals in frame on downstream or two faces
Comer Gildes:P.V.C.angel on bottom comers
Fin Spacers:Corrugated Aluminum
ASHRAE Capacity:585 grams at 4 WG(Independently Tested)
Collapse Strength :Greater than 34 WG(Independently Tested)
Removal Strap:Pull strap across panel face ,easily remove
Nominal Rated Capacity:2000CFM

Features:
1.Heavy duty construction provides additional collapse strength and security.
2.Increased extra 20% filtering area for lower pressure drop.
3.94% ASHRAE Dust Spot efficiency to provide additional protection for high speed rotating equipment.
4.Excellent clean ability.  Panel to be cleanable by compressed air or washable by mild detergent. Media pack can
remain fine shape and space.
5.Greater dust collection capacity.
6.Withstands differential high pressure and prevents contaminant bypass.

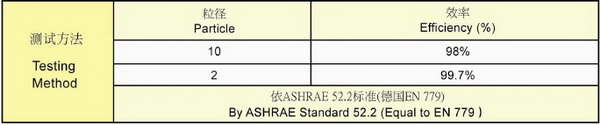

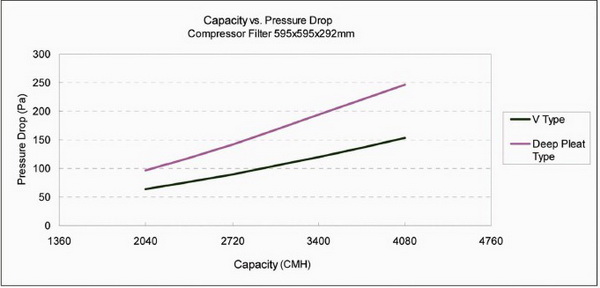

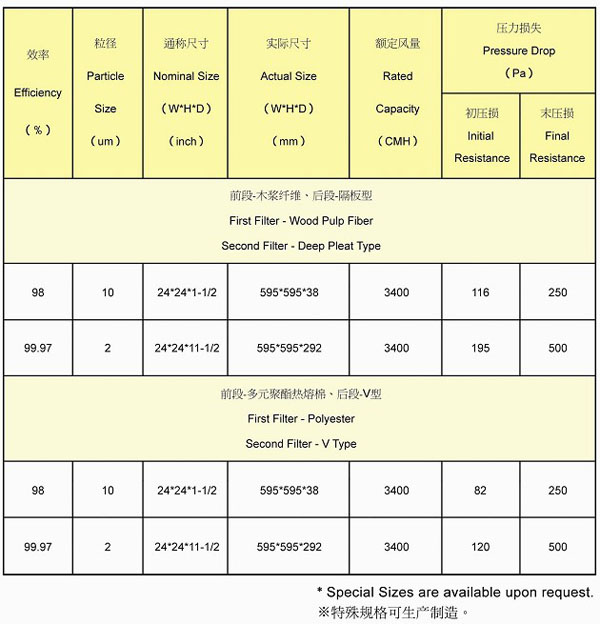

Performance Data

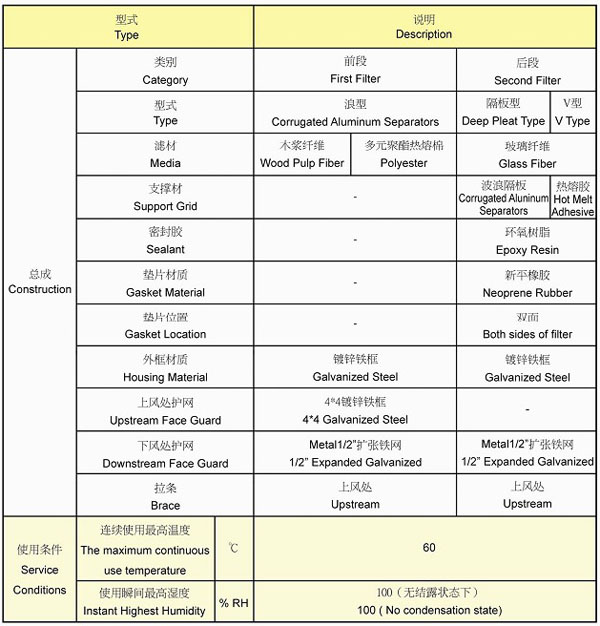

Material and Service Gonditions
